Tooling Products
PCC Fluid Fittings tooling products include Axial Swage DAT, Radial Swage DLT/DET and Tooling Accessories.
Tooling Documents
Axial Swage DAT
Axial swaged fitting is a tube fitting that is mechanically attached to the tube by axial swaging.

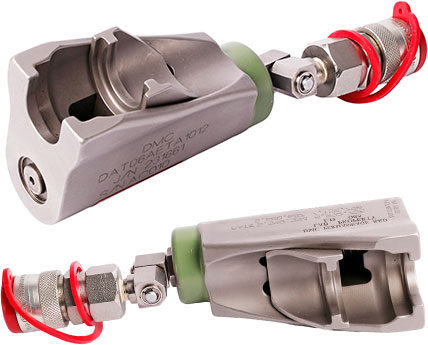

It works by deforming the fitting into the tube being joined by moving a ring, a component of the Permalite / AS Fitting, axially along the fitting length using a Permaswage Axial swage Tool (DAT).
This produces an interference fit between fitting and tube resulting in a leak resistant metal-to-metal seal and structurally sound joint.
Axial Swage DAT Supports
- Permalite Tube Connecting System
- AS Fitting for Hydraulic Tube Connecting Sytems Up To 5080 PSI

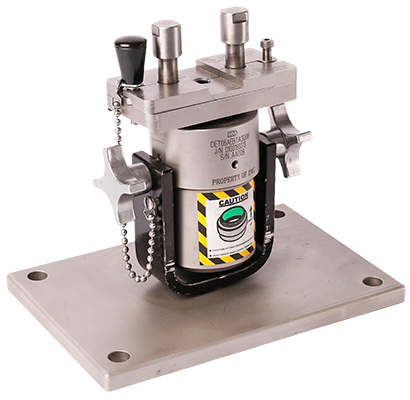

Radial Swage DLT/DET
The Permaswage system is a tube connecting system that mechanically attaches a Permaswage fitting to a tube by radial swaging.
The system is used to make permanent and separable connections between metal tubes.

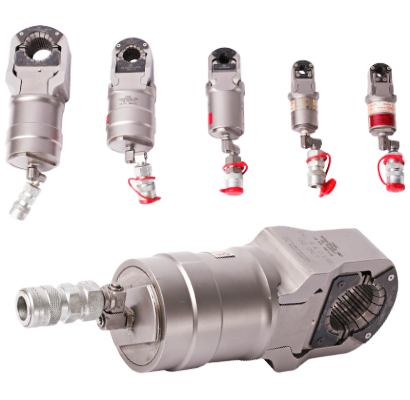

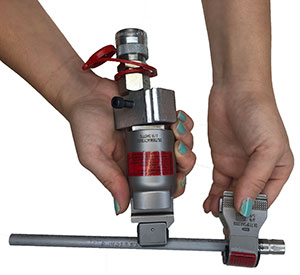

It works by deforming the metal fitting onto a tube radially, 360°around the circumference, using the Permaswage Lightweight Tool(DLT).

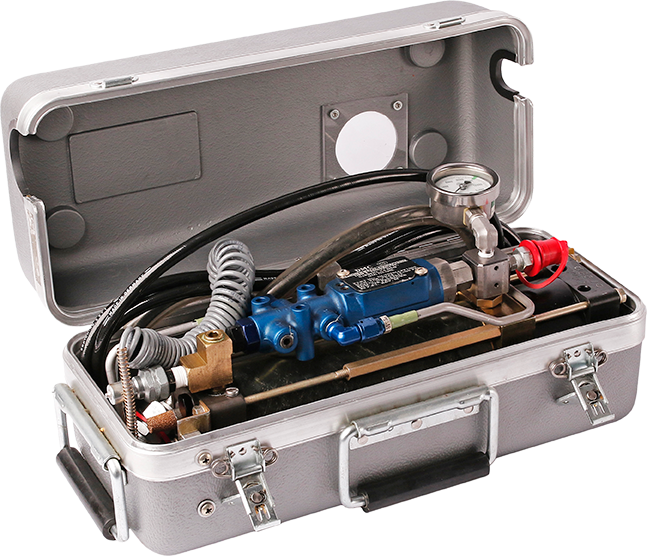

10,000 PSI Hydraulic Pumps
| Power Source | Part Number |
|---|---|
| Manual - Hand Operated | DLT05MAPM1000 |
| Pneumatic - With Hand Switch (70- 100 psi Shop Air) | DLT02MAPP1000 |
| Electric - Battery Operated, 24 VDC (Includes a 115 Volt AC Battery Charger) |
DLT07PEKT1200 |
| Electric - Battery Operated, 24 VDC (Includes a 220 Volt AC Battery Charger) |
DLT07PEKT2400 |
Tooling Accessories

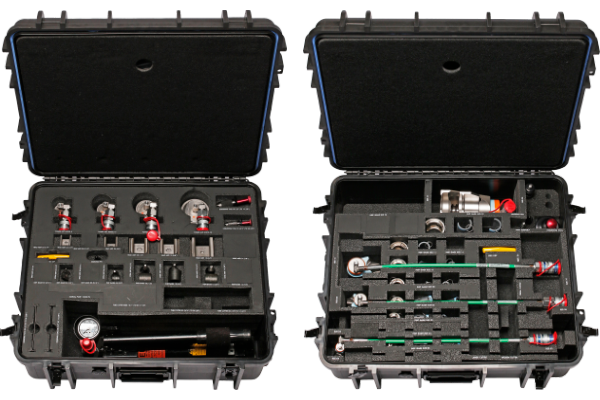

Tool kits include the following accessories. For any tooling accessories please contact one of our authorized distributors (Orkal / Adept):

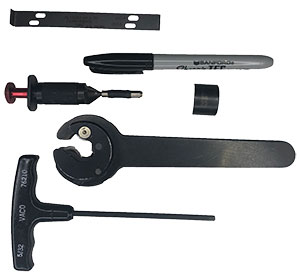

- Chipless Cutting Tool (variety of sizes)
- Deburring Tool (variety of sizes)
- Marking Pen
Service Request
Schedule tooling maintenance or installation training from our certified experts.
Authorized distributor for certified tooling trainings, inspections, and repair services.
+1 (516) 333-2121
sales@orkal.com
To obtain any SOPs, please contact us at g_PWUSTechSupport@pccairframe.com
